VAKO MVL20 Mobil Vertical Container Loader 20ft

  • Suitable for 20” ISO Containers
  • Fast en save loading and unloading
  • Strong and durable

MVL Youtube video

1 MVL Youtube video

MVL20

2 MVL20

MVL20

3 MVL20

MVL20

4 MVL20

MVL20

5 MVL20

MVL20

6 MVL20

Model Overview

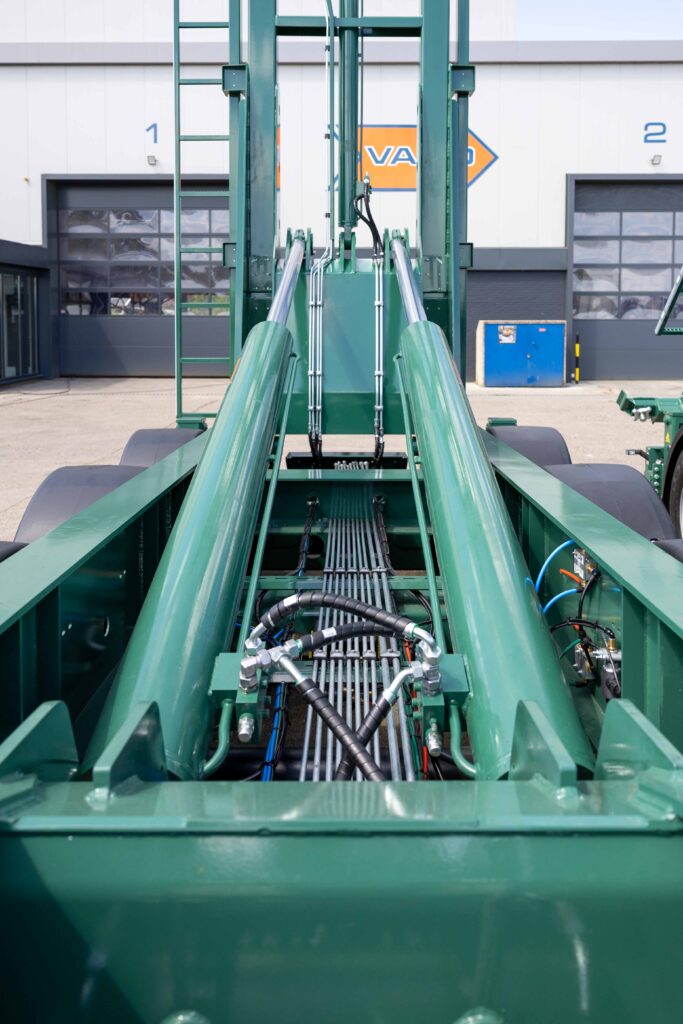

The VAKO 20″/95° vertical loader takes efficiency and safety to a new level. This robust trailer is specifically engineered for loading 20” ISO containers vertically with all types of bulk materials. With two powerful hydraulic cylinders, it effortlessly handles loads of up to 30 tons. Its construction is designed for maximum stability, even under the toughest conditions. Thanks to its compact build and steep loading angle, every loading operation remains smooth and controlled. The VAKO vertical loader boosts productivity at any worksite.

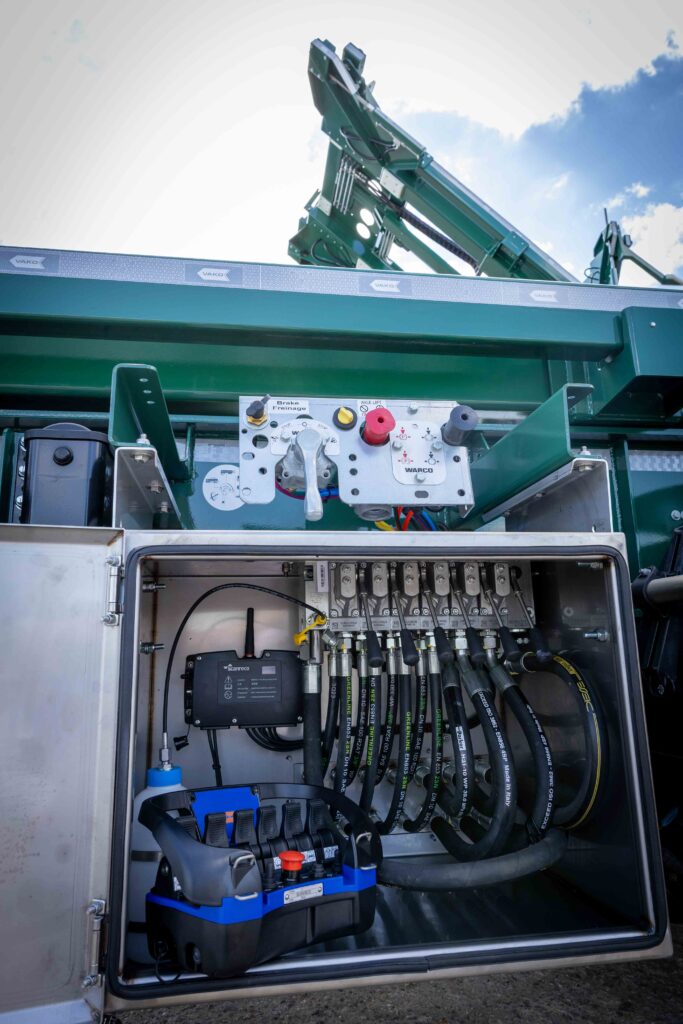

Operation is simple and secure with the wireless remote control, giving the operator full visibility at all times. The responsive hydraulics allow for precise movements without sudden shocks. This keeps not only the cargo safe, but also the working environment. Built for intensive daily use, the loader delivers reliability with minimal downtime. Every component reflects durability and the quality you expect from VAKO. This vertical loader is the ideal solution for companies seeking maximum efficiency, power and control.

Key Features

Suitable for 20” ISO Containers

Fast en save loading and unloading

Strong and durable

Specifications

General

Product Type VAKO MVL20 tilting container chassis
Container Size 20 ft ISO container
Tipping Angle 95 degrees

Chassis

Chassis Type PACTON TXC342.2S
Total Length Suitable for 1 x 20 ft container, approx. 9,000 mm
Width 2,550 mm
Trailer Height 1,150 mm
Neck Height 150 mm
System Height 230 mm
Tare Weight Approx. 7,850 kg incl. VAKO tipping installation, excl. options

Weights and Loads

King Pin Load 16,000 kg
Axle Load 27,000 kg
Gross Vehicle Weight (GVW) 43,000 kg

Tipping Installation

Tipping System VAKO 95 degree vertical tipping container system
Slide and Tipping Capacity 30,000 kg
Maximum Tipping Angle 95 degrees
Slide Distance Approx. 3,250 mm horizontal and vertical
Maximum Working Pressure 275 bar

Gallery & Video
